Horizontal Type Mixer BU Series
Horizontal type of BU blender，tumbler is design being U shape. The tumbler has left and right screw blade, the material is proceeded left / right and cross mixing when rotation for big volume mixing to design.
-
- Power: 3 Hp.
- R.P.M.: 60 rpm.
- Machine Weight: 180 kg.
- Machine Size: 915*905*1250 mm.
- Capacity: 50 Kg.

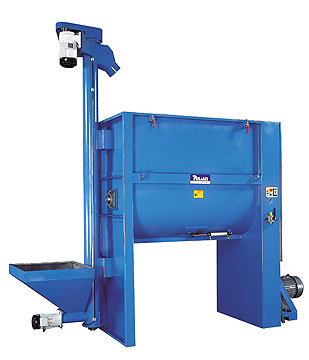

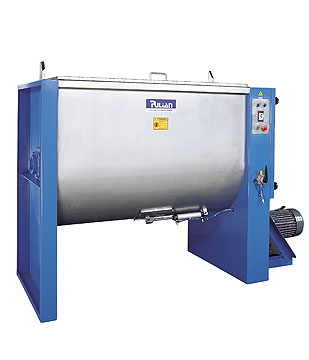

BU-50
-
- Power: 5 Hp.
- R.P.M.: 60 rpm.
- Machine Weight: 280 kg.
- Machine Size: 1240*1020*1160 mm.
- Capacity: 100 Kg.
BU-100
-
- Power: 7.5 Hp.
- R.P.M.: 60 rpm.
- Machine Weight: 360 kg.
- Machine Size: 1710*1100*1280 mm.
- Capacity: 200 Kg.
BU-200
-
- Power: 10 Hp.
- R.P.M.: 60 rpm.
- Machine Weight: 480 kg.
- Machine Size: 1710*1240*1460 mm.
- Capacity: 300 Kg.
BU-300
-
- Power: 15 Hp.
- R.P.M.: 60 rpm.
- Machine Weight: 650 kg.
- Machine Size: 1710*1430*1740 mm.
- Capacity: 500 Kg.
BU-500
-
- Power: 5 HP.
- R.P.M: 60 rpm.
- Machine Weight: 280 kg.
- Machine Size: 1240*1020*1160 mm.
- Capacity: 100 kg.

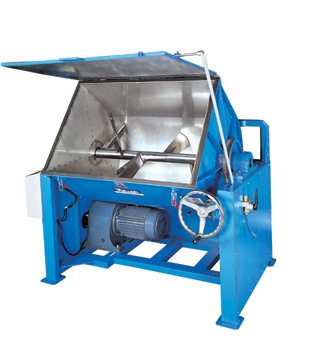

BU-100B
-
- Power: 5 Hp.
- R.P.M.: 60 rpm.
- Machine Weight: 320 kg.
- Machine Size: 2150*675*1350 mm.
- Capacity: 200 Kg.
BU-200B
-
- Power: 7.5 Hp.
- R.P.M.: 60 rpm.
- Machine Weight: 450 kg.
- Machine Size: 2480*825*1600 mm.
- Capacity: 300 Kg.
BU-300B
-
BU-400B
-
- Power: 10 Hp.
- R.P.M.: 60 rpm.
- Machine Weight: 600 kg.
- Machine Size: 2590*975*1500 mm.
- Capacity: 500 Kg.
BU-500B
-
BU-600B
-
- Power: 15 Hp.
- R.P.M.: 60 rpm.
- Machine Weight: 900 kg.
- Machine Size: 2820*1375*2070 mm.
- Capacity: 1000 Kg.
BU-1000B
