Skeletal Recycling Granulator (Roller-Press) AR-series

AR series aims to granulate wide board material, waste material, film, and thermo forming edge material; we develop this model with roller design to automatically transport the material into chamber, and adopt blower to send material into cyclone to store material. With proportional mixing of raw material and granulated material to achieve a recycling system. Reduce operating costs and waste generation to be a durable model.

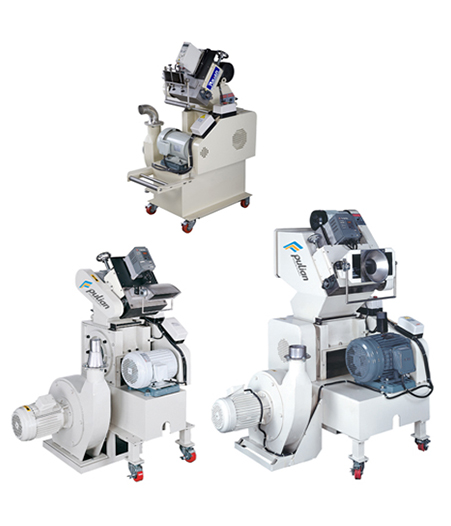

    • container of AR-200
      AR-200
      • Max. Material Width:<200mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:3-5HP(2.25kw-3.75kw)
      • Rotating Diameter:Ø240mm
      • Inlet Size:200x240mm
      • R.P.M.:450/530rpm
      • Rotary Blade:3pcs(3claws)
      • Stationary Blade:2pcs
      • Machine Weight:290kg
      • Machine Size:530*970*1300mm
      • Capacity:120-200 kg/hr
      Video

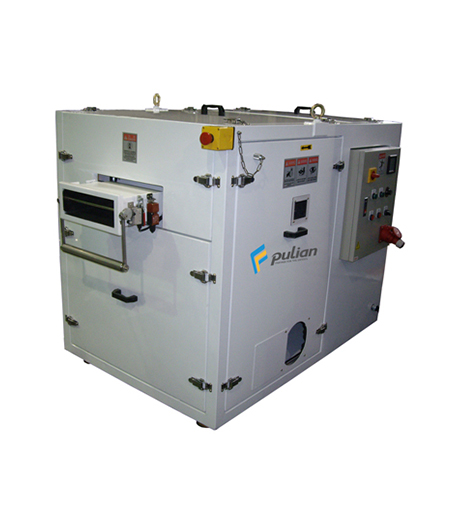

      AR-300
      • Max. Material Width:<300mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:5-7.5 HP(3.75kw-5.6kw)
      • Rotating Diameter:Ø240mm
      • Inlet Size:300x240mm
      • R.P.M.:450/530rpm
      • Rotary Blade:3pcs(3claws)
      • Stationary Blade:2pcs
      • Machine Weight:380kg
      • Machine Size:590*1100*1350mm
      • Capacity:150-200 kg/hr
      Video
      AR-400
      • Max. Material Width:<400mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:7.5-10HP(5.6kw-7.5kw)
      • Rotating Diameter:Ø240mm
      • Inlet Size:400x240mm
      • R.P.M.:620/730rpm
      • Rotary Blade:6pcs(3claws)
      • Stationary Blade:2pcs
      • Machine Weight:620kg
      • Machine Size:780*1280*1320mm
      • Capacity:180-250 kg/hr

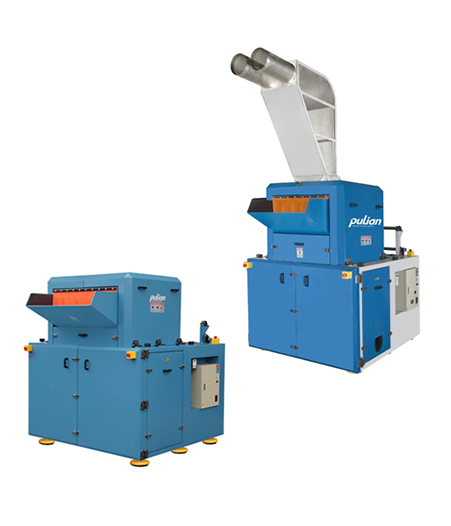

    • container of AR-500
      AR-500
      • Max. Material Width:<500mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:30-50HP (22.5kw-37.5kw)
      • Rotating Diameter:Ø380mm
      • Inlet Size:500×300mm
      • R.P.M.:540/650rpm
      • Rotary Blade:6pcs(3claws)
      • Stationary Blade:3pcs
      • Machine Weight:1800kg
      • Machine Size:1150*1850*1970mm
      • Capacity:300-450 kg/hr
      AR-500S
      • Max. Material Width:<500mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:10-15HP
      • Rotating Diameter:Ø240mm
      • Inlet Size:500×240mm
      • R.P.M.:540/650rpm
      • Rotary Blade:6pcs(3claws)
      • Stationary Blade:3pcs
      • Machine Weight:1000kg
      • Machine Size:1285*1900*2000mm
      • Capacity:200-300 kg/hr
      AR-750
      • Max. Material Width:< 750mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:40-60 HP(30kw-45kw)
      • Rotating Diameter:Ø380mm
      • Inlet Size:750×300mm
      • R.P.M.:540/650rpm
      • Rotary Blade:9pcs(3claws)
      • Stationary Blade:3pcs
      • Machine Weight:2000kg
      • Machine Size:1540*2080*2050mm
      • Capacity:350-500 kg/hr
      AR-800S
      • Max. Material Width:<800mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:10-20HP
      • Rotating Diameter:Ø240mm
      • Inlet Size:800×240mm
      • R.P.M.:540/650rpm
      • Rotary Blade:9pcs(3claws)
      • Stationary Blade:2pcs
      • Machine Weight:1200kg
      • Machine Size:1530*1900*2050mm
      • Capacity:250-350 kg/hr

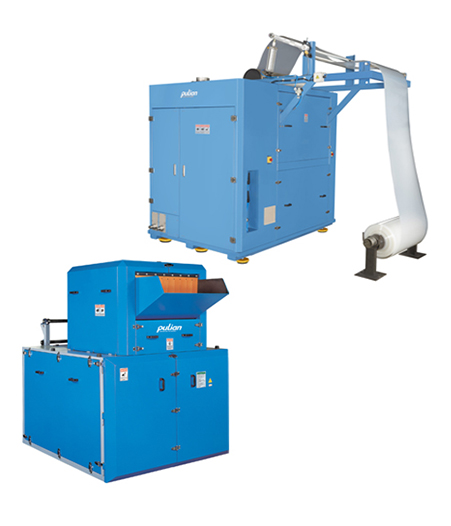

    • container of AR-1000S
      AR-1000S
      • Max. Material Width:<1000mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:15-20HP
      • Rotating Diameter:Ø240mm
      • Inlet Size:1000×240mm
      • R.P.M.:540/650rpm
      • Rotary Blade:12pcs(3claws)
      • Stationary Blade:2pcs(2x2)
      • Machine Weight:1500kg
      • Machine Size:1785*1900*2050mm
      • Capacity:300-400 kg/hr
      AR-1000
      • Max. Material Width:<1000mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:50-75HP (37.5kw-56.25kw)
      • Rotating Diameter:Ø380mm
      • Inlet Size:1000×300mm
      • R.P.M.:540/650rpm
      • Rotary Blade:12pcs(3claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:3000kg
      • Machine Size:1840*2140*2050mm
      • Capacity:400-550 kg/hr
      AR-1000B
      • Max. Material Width:<1000mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:53-200HP (37.5kw-75kw)
      • Rotating Diameter:Ø480mm
      • Inlet Size:1000×500mm
      • R.P.M.:540/650rpm
      • Rotary Blade:12pcs(3claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:4000kg
      • Machine Size:1840*2090*2580mm
      • Capacity:400-650 kg/hr
      AR-1000X
      • Max. Material Width:<1000mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:75-100 HP(56.25kw-75kw)
      • Rotating Diameter:Ø800mm
      • Inlet Size:1000×800mm
      • R.P.M.:380/450rpm
      • Rotary Blade:12pcs(5claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:5000kg
      • Machine Size:1940*3600*3500mm
      • Capacity:700-900 kg/hr
      AR-1000G
      • Max. Material Width:<1000mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:125-150HP (93.75kw-112.5kw)
      • Rotating Diameter:Ø1000mm
      • Inlet Size:1000×1000mm
      • R.P.M.:320/380rpm
      • Rotary Blade:20pcs(5claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:6200kg
      • Machine Size:1940*3610*4070mm
      • Capacity:803-2000 kg/hr
    • container of AR-1250S
      AR-1250S
      • Max. Material Width:<1250mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:25-30HP
      • Rotating Diameter:Ø240mm
      • Inlet Size:1250×240mm
      • R.P.M.:540/650rpm
      • Rotary Blade:15pcs(3claws)
      • Stationary Blade:2pcs(2x2)
      • Machine Weight:1700kg
      • Machine Size:2035*1900*2050mm
      • Capacity:350-450 kg/hr
      AR-1250
      • Max. Material Width:<1250mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:63-200HP(45kw-75kw)
      • Rotating Diameter:Ø380mm
      • Inlet Size:1250×300mm
      • R.P.M.:540/650rpm
      • Rotary Blade:15pcs(3claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:3100kg
      • Machine Size:2090*2140*2050mm
      • Capacity:450-600 kg/hr
      AR-1250B
      • Max. Material Width:<1250mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:75-125HP (56.25kw-93.75kw)
      • Rotating Diameter:Ø480mm
      • Inlet Size:1250×500mm
      • R.P.M.:540/650rpm
      • Rotary Blade:15pcs(3claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:4500kg
      • Machine Size:1750*2700*2800mm
      • Capacity:400-800 kg/hr
      AR-1250H
      • Max. Material Width:<1250mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:75-100 HP (56.25kw-75kw)
      • Rotating Diameter:Ø650mm
      • Inlet Size:1250×650mm
      • R.P.M.:450/530rpm
      • Rotary Blade:25pcs(5claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:4800kg
      • Machine Size:1750*2700*3000mm
      • Capacity:500-900 kg/hr
      AR-1250X
      • Max. Material Width:<1250mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:100-125 HP (75kw-93.75kw)
      • Rotating Diameter:Ø800mm
      • Inlet Size:1250×800mm
      • R.P.M.:380/450rpm
      • Rotary Blade:25pcs(5claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:5600kg
      • Machine Size:2190*3610*3500mm
      • Capacity:603-2000 kg/hr
      AR-1250G
      • Max. Material Width:<1250mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:125-150HP (93.75kw-112.5kw)
      • Rotating Diameter:Ø1000mm
      • Inlet Size:1250×1000mm
      • R.P.M.:320/380rpm
      • Rotary Blade:25pcs(5claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:6500kg
      • Machine Size:2190*3610*4070mm
      • Capacity:800-1200 kg/hr
    • container of AR-1500B
      AR-1500B
      • Max. Material Width:<1500mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:75-125HP (56.25kw-93.75kw)
      • Rotating Diameter:Ø480mm
      • Inlet Size:1500*500mm
      • R.P.M.:540/650rpm
      • Rotary Blade:18pcs(3claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:5500kg
      • Machine Size:2340*2700*2800mm
      • Capacity:500-900kg/hr
      AR-1500H
      • Max. Material Width:<1500mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:125-150HP (93.75kw-112.5kw)
      • Rotating Diameter:Ø650mm
      • Inlet Size:1500*650mm
      • R.P.M.:540/650rpm
      • Rotary Blade:30pcs(5claws)
      • Stationary Blade:3pcs(3x3)
      • Machine Weight:5800kg
      • Machine Size:2340*2700*3000mm
      • Capacity:600-1100kg/hr
      AR-1500X
      • Max. Material Width:<1500mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:125-150HP (93.75kw-112.5kw)
      • Rotating Diameter:Ø800mm
      • Inlet Size:1500*800mm
      • R.P.M.:380/450rpm
      • Rotary Blade:30pcs(5claws)
      • Stationary Blade:3pcs(3x3)
      • Machine Weight:6300kg
      • Machine Size:2440*3600*3500mm
      • Capacity:700-1200kg/hr
      AR-1500G
      • Max. Material Width:<1500mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:150-175HP (112.5kw-131.25kw)
      • Rotating Diameter:Ø1000mm
      • Inlet Size:1500*1000mm
      • R.P.M.:320/380rpm
      • Rotary Blade:30pcs(5claws)
      • Stationary Blade:3pcs(3x2)
      • Machine Weight:6800kg
      • Machine Size:2440*3610*4070mm
      • Capacity:1000-1400kg/hr
    • container of AR-1750B
      AR-1750B
      • Max. Material Width:<1750mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:75-125 HP (56.25kw-93.75kw)
      • Rotating Diameter:Ø480mm
      • Inlet Size:1750*500mm
      • R.P.M.:540/650rpm
      • Rotary Blade:21pcs(3claws)
      • Stationary Blade:3pcs(3x3)
      • Machine Weight:5500kg
      • Machine Size:2590*2700*2800mm
      • Capacity:600-950kg/hr
      AR-1750H
      • Max. Material Width:<1750mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:125-150HP (93.75kw-112.5kw)
      • Rotating Diameter:Ø650mm
      • Inlet Size:1750*650mm
      • R.P.M.:540/650rpm
      • Rotary Blade:35pcs(5claws)
      • Stationary Blade:3pcs(3x3)
      • Machine Weight:5800kg
      • Machine Size:2590*2700*3000mm
      • Capacity:700-1100kg/hr
      AR-1750X
      • Max. Material Width:<1750mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:150-175HP (112.5kw-131.25kw)
      • Rotating Diameter:Ø800mm
      • Inlet Size:1750*800mm
      • R.P.M.:380/450rpm
      • Rotary Blade:35pcs(5claws)
      • Stationary Blade:3pcs(3x3)
      • Machine Weight:6000kg
      • Machine Size:2590*3600*3500mm
      • Capacity:800-1300kg/hr
      AR-1750G
      • Max. Material Width:<1750mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:150-175HP (112.5kw-131.25kw)
      • Rotating Diameter:Ø1000mm
      • Inlet Size:1750*1000mm
      • R.P.M.:320/380rpm
      • Rotary Blade:35pcs(5claws)
      • Stationary Blade:3pcs(3x3)
      • Machine Weight:7100kg
      • Machine Size:2690*3610*4070mm
      • Capacity:1100-1450kg/hr

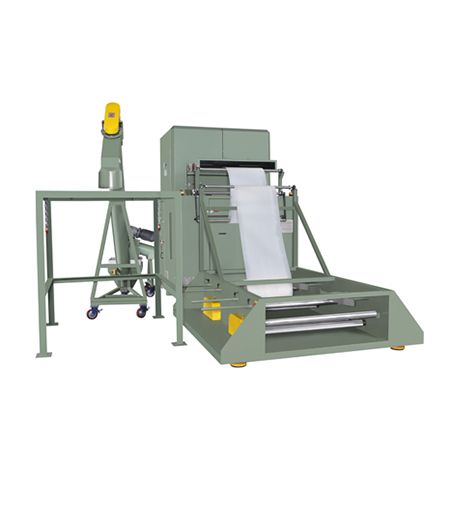

    • container of AR-2000B
      AR-2000B
      • Max. Material Width:<2000mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:100-125 HP (75kw-93.75kw)
      • Rotating Diameter:Ø480mm
      • Inlet Size:2000*500mm
      • R.P.M.:540/650rpm
      • Rotary Blade:24pcs(3claws)
      • Stationary Blade:3pcs(3x4)
      • Machine Weight:6800kg
      • Machine Size:2830*2740*3000mm
      • Capacity:703-2000kg/hr
      AR-2000H
      • Max. Material Width:<2000mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:150-175HP (112.5kw-131.25kw)
      • Rotating Diameter:Ø650mm
      • Inlet Size:2000*650mm
      • R.P.M.:540/650rpm
      • Rotary Blade:40pcs(5claws)
      • Stationary Blade:3pcs(3x4)
      • Machine Weight:7100kg
      • Machine Size:2830*2700*3000mm
      • Capacity:800-1200kg/hr
      AR-2000X
      • Max. Material Width:<2000mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:150-175HP (112.5kw-131.25kw)
      • Rotating Diameter:Ø800mm
      • Inlet Size:2000*800mm
      • R.P.M.:380/450rpm
      • Rotary Blade:40pcs(5claws)
      • Stationary Blade:3pcs(3x4)
      • Machine Weight:7600kg
      • Machine Size:2940*3610*3500mm
      • Capacity:900-1400kg/hr
      AR-2000G
      • Max. Material Width:<2000mm
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:150-200HP (112.5kw-150kw)
      • Rotating Diameter:Ø1000mm
      • Inlet Size:2000*1000mm
      • R.P.M.:320/380rpm
      • Rotary Blade:40pcs(5claws)
      • Stationary Blade:3pcs(3x4)
      • Machine Weight:8000kg
      • Machine Size:2940*3610*4070mm
      • Capacity:1200-1500kg/hr
    • container of AR-200R/L
      AR-200R/L
      • Max. Material Width:<200mm*2
      • Max. Material Thickness:2mm 以上
      • Roller Speed:3-20m/min
      • Power:3HP*2
      • Rotating Diameter:Ø240mm
      • Inlet Size:200*280mm
      • R.P.M.:450/530rpm
      • Rotary Blade:3pcs(3claws)
      • Stationary Blade:3pcs
      • Machine Weight:350kg*2
      • Machine Size:1140*1340*980mm
      • Capacity:40-150 kg/hr
      AR-300R/L
      • Max. Material Width:< 300mm*2
      • Max. Material Thickness:2mm 以上
      • Roller Speed:3-20m/min
      • Power:5 HP*2
      • Rotating Diameter:Ø240mm
      • Inlet Size:300×280mm
      • R.P.M.:450/530rpm
      • Blade:3pcs(3claws)
      • Stationary Blade:3pcs
      • Machine Weight:745kg*2
      • Machine Size:1240*1340*1020mm
      • Capacity:50-180 kg/hr
      AR-300BR/L
      • Max. Material Width:<300mm*2
      • Max. Material Thickness:2mm 以上
      • Roller Speed:3-20m/min
      • Power:10HP*2
      • Rotating Diameter:Ø380mm
      • Inlet Size:300*210mm
      • R.P.M.:540/650rpm
      • Rotary Blade:12pcs(claws type)
      • Stationary Blade:3pcs
      • Machine Weight:1650kg*2
      • Machine Size:1590*1980*1550mm
      • Capacity:150-250 kg/hr
      AR-450R/L
      • Max. Material Width:<450mm*2
      • Max. Material Thickness:2mm以上
      • Roller Speed:3-20m/min
      • Power:15HP*2
      • Rotating Diameter:Ø380mm
      • Inlet Size:450*210mm
      • R.P.M.:540/650rpm
      • Rotary Blade:18pcs(claws type)
      • Stationary Blade:3pcs
      • Machine Weight:1570kg*2
      • Machine Size:1600*1780*1440mm
      • Capacity:200-300 kg/hr
      AR-500R/L
      • Max. Material Width:<500mm*2
      • Max. Material Thickness:2mm以上
      • Roller Speed:3-20m/min
      • Power:30-50HP*2
      • Rotating Diameter:Ø380mm
      • Inlet Size:500*300mm
      • R.P.M.:540/650rpm
      • Rotary Blade:6pcs
      • Stationary Blade:3pcs
      • Machine Weight:1800kg*2
      • Machine Size:1590*1710*1380mm
      • Capacity:300-450 kg/hr
    • container of AR-200F
      AR-200F
      • Max. Material Width:<200mm
      • Max. Material Thickness:2mm 以上
      • Roller Speed:3-20m/min
      • Power:3-5HP
      • Rotating Diameter:Ø240mm
      • Inlet Size:200×280mm
      • R.P.M.:450/530rpm
      • Rotary Blade:3pcs(3claws)
      • Stationary Blade:3pcs
      • Machine Weight:290kg
      • Machine Size:530*970*130mm
      • Capacity:120-200 kg/hr
      AR-300F
      • Max. Material Width:<300mm
      • Max. Material Thickness:2mm 以上
      • Roller Speed:3-20m/min
      • Power:5-7.5HP
      • Rotating Diameter:Ø240mm
      • Inlet Size:300×280mm
      • R.P.M.:450/530rpm
      • Rotary Blade:3pcs(3claws)
      • Stationary Blade:3pcs
      • Machine Weight:380kg
      • Machine Size:590*1100*1350mm
      • Capacity:150-200 kg/hr
      AR-400F
      • Max. Material Width:<400mm
      • Max. Material Thickness:2mm 以上
      • Roller Speed:3-20m/min
      • Power:7.5-10HP
      • Rotating Diameter:Ø240mm
      • Inlet Size:400×280mm
      • R.P.M.:450/530rpm
      • Rotary Blade:6pcs(3claws)
      • Stationary Blade:3pcs
      • Machine Weight:620kg
      • Machine Size:780*1280*1320mm
      • Capacity:180-250 kg/hr
    • container of AR-300C
      AR-300C
      • Max. Material Width:130mm*2
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:5HP
      • Rotating Diameter:Ø240mm
      • Inlet Size:300×240mm
      • R.P.M.:450/530rpm
      • Rotary Blade:3pcs(3claws)
      • Stationary Blade:2pcs
      • Machine Weight:380kg
      • Machine Size:910*1150*1610mm
      • Capacity:100-180 kg/hr
      AR-400C
      • Max. Material Width:180mm*2
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:7.5HP
      • Rotating Diameter:Ø240mm
      • Inlet Size:400×240mm
      • R.P.M.:450/530rpm
      • Rotary Blade:6pcs(3claws)
      • Stationary Blade:2pcs
      • Machine Weight:620kg
      • Machine Size:1300*1350*1300mm
      • Capacity:120-180 kg/hr
      AR-500C
      • Max. Material Width:230mm*2
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:15HP
      • Rotating Diameter:Ø380mm
      • Inlet Size:500×300mm
      • R.P.M.:540/650rpm
      • Rotary Blade:6pcs(3claws)
      • Stationary Blade:3pcs
      • Machine Weight:2400kg
      • Machine Size:1470*1780*2230mm
      • Capacity:150-250 kg/hr
      AR-640C
      • Max. Material Width:300mm*2
      • Max. Material Thickness:0.2-2mm
      • Roller Speed:5-30m/min
      • Power:30HP
      • Rotating Diameter:Ø380mm
      • Inlet Size:640×300mm
      • R.P.M.:540/650rpm
      • Rotary Blade:9pcs(3claws)
      • Stationary Blade:2pcs
      • Machine Weight:2660kg
      • Machine Size:1660*2000*2090mm
      • Capacity:200-350 kg/hr

Sitemap Plastic Granulator Shredder Equipment Single Twin Shaft Shredder Equipment
Plastic Edge Recycling System
