Vacuum auto loader for AVE-series(Electric & CE regulation)

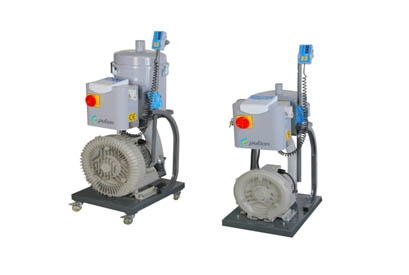

    • AVE-2
      • POWER : 1.2HP , 3Ø200~415V
      • Conveying Capacity : 300 kg/hr
      • Hopper Content : 10lit
      • Machine Size : 500*350*890mm
      • Hopper Size : Ø300*240mm
      • Machine Weight : 43kg
      • Suction Tube Diameter : 1.5"
      • Accessory :
        <1.>Clamp Tube : 2"*4pcs
        <2.>Suction Tube : 1.5"*1pcs
        <3.>P.V.C. pipe : 1.5" 4m*2pcs

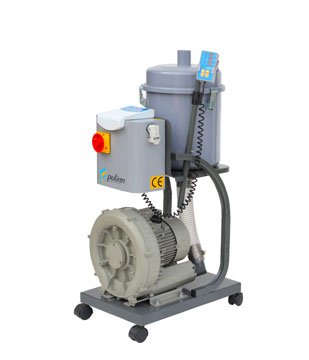

    • AVE-3
      • MODEL: AVE-3
      • POWER: 3.5HP, 3Ø 200~415V
      • Conveying Capacity : 350~400 kg/hr
      • Hopper Content : 10lit
      • Machine Size: 500*400*930mm
      • Hopper Size : Ø300*240mm
      • Machine Weight : 52kg
      • Suction Tube Diameter: 1.5" or 2"
      • Accessory :
        <1.>Clamp Tube : 2"*4pcs
        <2.>Suction Tube : 1.5"*1pcs
        <3.>P.V.C. pipe : 1.5" 4m*2pcs



      • MODEL: AVE-3
      • POWER: 3.5HP, 3Ø 200~415V
      • Conveying Capacity : 400~480kg/hr
      • Hopper Content : 30lit
      • Machine Size: 500*400*930mm
      • Hopper Size : Ø300*440mm
      • Machine Weight : 52kg
      • Suction Tube Diameter: 1.5" or 2"
      • Accessory :
        <1.>Clamp Tube : 2"*4pcs
        <2.>Suction Tube : 1.5"*1pcs
        <3.>P.V.C. pipe : 1.5" 4m*2pcs
    • AVE-5
      • MODEL : AVE-5
      • POWER : 5HP, 3Ø 200~415V
      • Conveying Capacity : 450~500 kg/hr
      • Hopper Content : 30lit
      • Machine Size : 500*400*1020mm
      • Hopper Size : Ø300*440mm
      • Machine Weight : 58kg
      • Suction Tube Diamete r: 2"
      • Accessory :
        <1.>Clamp Tube : 2.5"*4pcs
        <2.>Suction Tube : 2"*1pcs
        <3.>P.V.C. pipe : 2" 4m*2pcs



      • MODEL : AVE-5
      • POWER : 5HP, 3Ø 200~415V
      • Conveying Capacity : 500~600kg/hr
      • Hopper Content : 60lit
      • Machine Size : 500*400*1020mm
      • Hopper Size : Ø300*440mm
      • Machine Weight : 58kg
      • Suction Tube Diameter : 2"
      • Accessory :
        <1.>Clamp Tube : 2.5"*4pcs
        <2.>Suction Tube : 2"*1pcs
        <3.>P.V.C. pipe : 2" 4m*2pcs
    • AVE-7.5
      • POWER : 7.5HP, 3Ø 200~415V
      • Conveying Capacity : 700~800 kg/hr
      • Hopper Content : 90lit
      • Machine Size: 610*500*1190mm
      • Hopper Size : Ø500*910mm
      • Machine Weight : 70kg
      • Suction Tube Diameter : 3"
      • Accessory :
        <1.>Clamp Tube : 3.5"*4pcs
        <2.>Suction Tube : 3"*1pcs
        <3.>P.V.C. pipe : 3" 4m*2pcs



      • MODEL : AVE-7.5
      • POWER : 7.5HP, 3Ø 200~415V
      • Conveying Capacity :900~1000kg/hr
      • Hopper Content : 150lit
      • Machine Size : 610*500*1190mm
      • Hopper Size : Ø400*1280mm
      • Machine Weight : 70kg
      • Suction Tube Diameter : 3"
      • Accessory :
        <1.>Clamp Tube : 3.5"*4pcs
        <2.>Suction Tube : 3"*1pcs
        <3.>P.V.C. pipe : 3" 4m*2pcs
