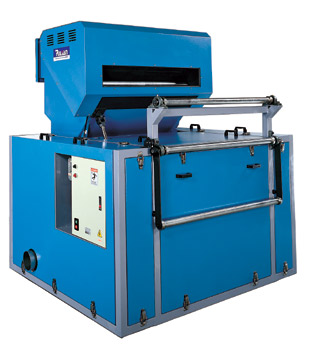

Roller Press Conveying AR-1750
|
|
|
| Roller-Press Conveying for AR-series |
| Product Specifications |
- MAX. MATERIAL WIDTH: <1750mm
- MAX. MATERIAL THICKNESS: 0.1~3mm
- ROLLER SPEED: 0-30m/min
- POWER: 75-150HP(56.25kw~112.5kw)
- ROTATING DIAMETER: Ø480mm
- INLET SIZE: 1750*500mm
- R.P.M: 560rpm
- ROTARY BLADE: 21pcs(3claws)
- STATIONARY BLADE: 3pcs(3x3)
- MACHINE WEIGHT: 1800kg
- MACHINE SIZE: 2500*2650*2560mm
- CAPACITY: 450~900kg/hr
|
|
